This Powder Coating Line is used to provide an anti-corrosive surface treatment for mesh fence, wire mesh fence, perforated metal mesh, mesh sheet, expanded metal mesh fence, fence sheet, fence mesh, isolated gate and matched posts. As one kind of safety security, the finished products are great to be fencing for highway, railway, airport and so on.

Main technical parameters:
(1) Max. size of mesh fence: 4000mm long * 2500mm wide
(2) Coating speed: 40~60 sheets per hour
(3) Power consumption: installed capacity 60kw, average power 50kw
(4) Oil consumption: 2200-3000m3/24h
(5) Water consumption: 0.6 -1.2 m3/h (circulating water)
(6) Plant request size(L*W*H): ≥ 50000mm *14000mm * 5000mm

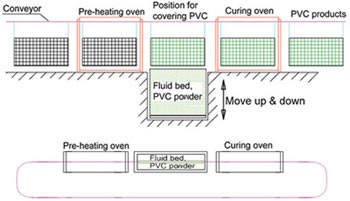

Process flow:
Manual feeding - Pre-heating - Auto powder immersion - Curing - Coated workpiece cooling - Manual discharging - Manual shaping correction - Quality control - Final

package

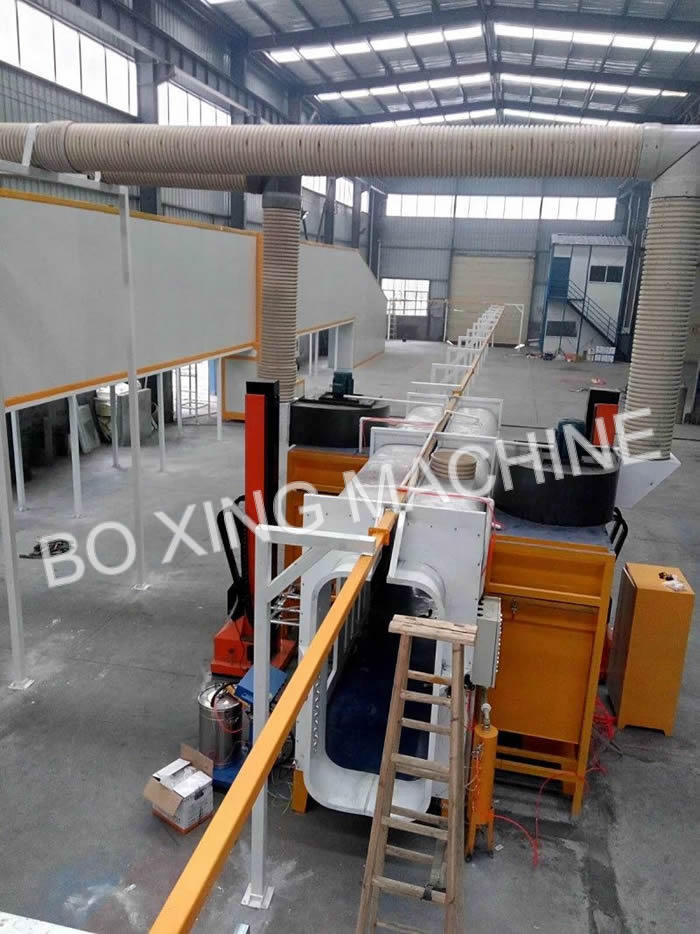

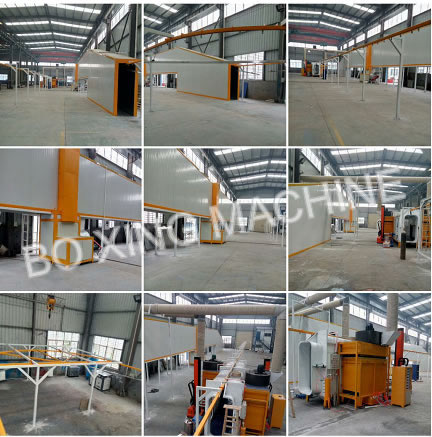

Composition of a complete coating line:
(1) Auto eletrical pre-heating & curing furnace;

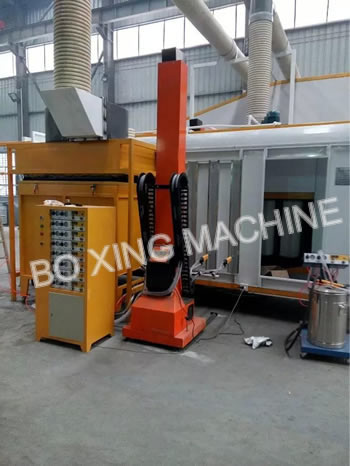

(2) Auto coating powder up-and-down device, vibration generator, fluidized bed;

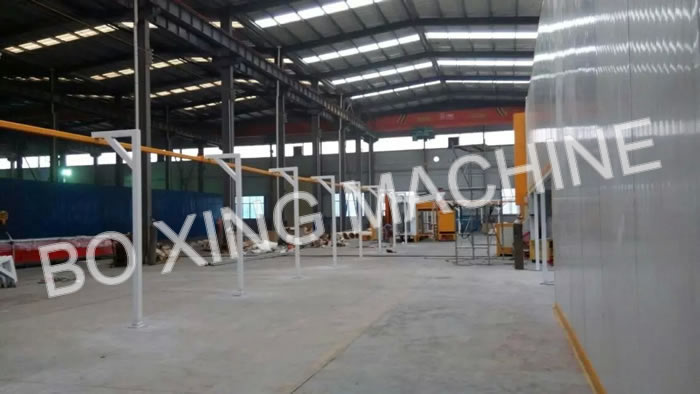

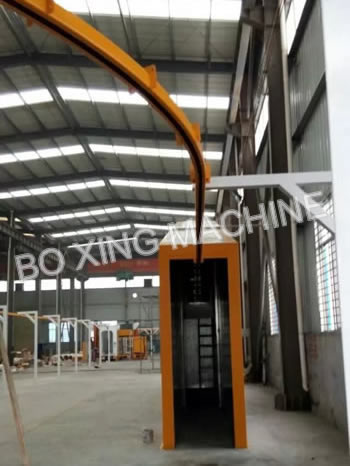

(3) Hanging delivery system, special hanger for workpiece;
(4) Power supply control equipment, auto program control.
