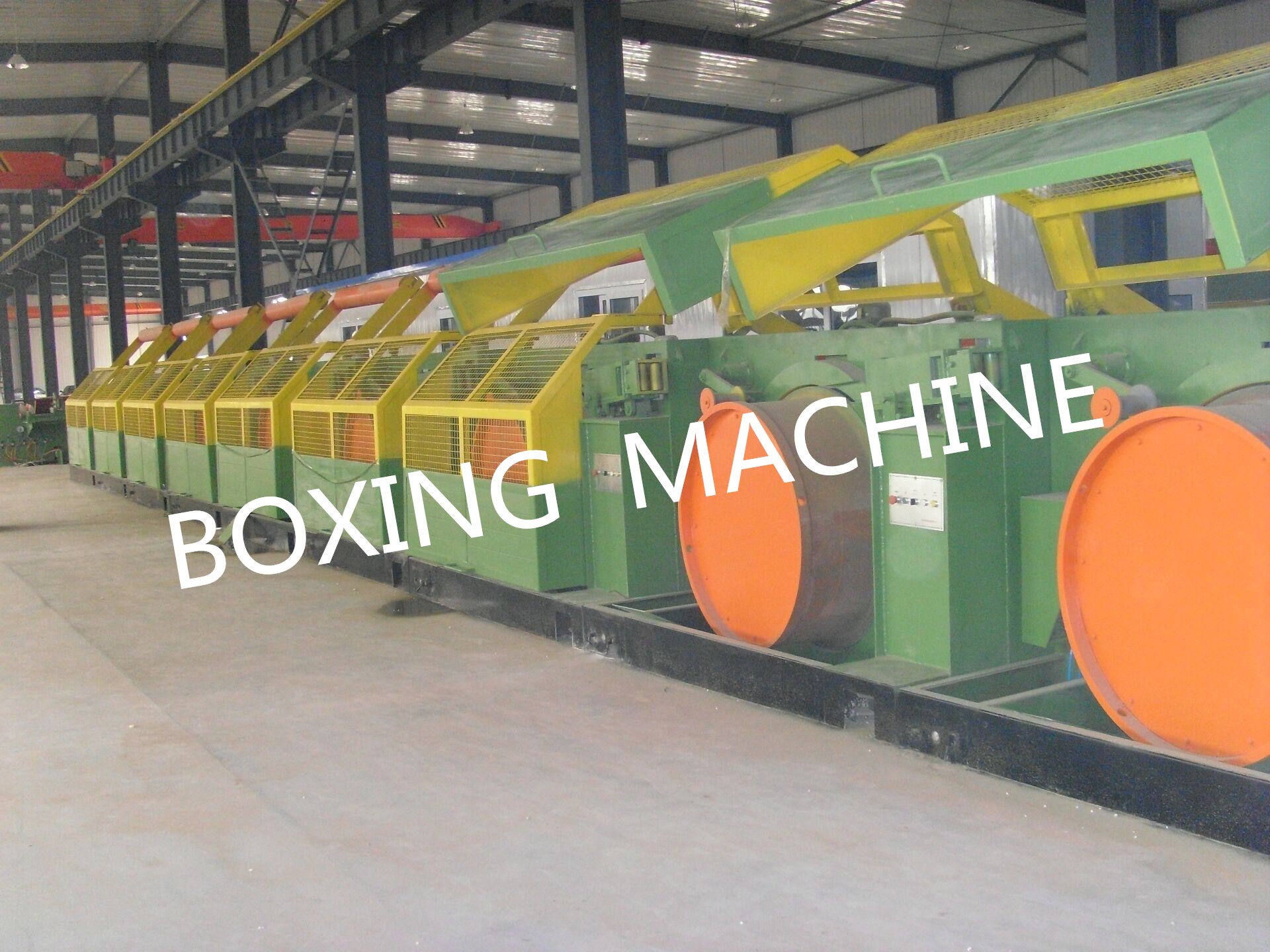

PC strand Wire machine  production line;

1.1I-Wheel Outer Diameter 1250 mm

1.2I-wheel unit weight 3.5T

1.3Tension Wheel Diameter 2000 mm

1.4Receiver Volume Weight 25T

VolumeWeight 4T of 1.5 Layer Coiler

MainTechnical Parameters

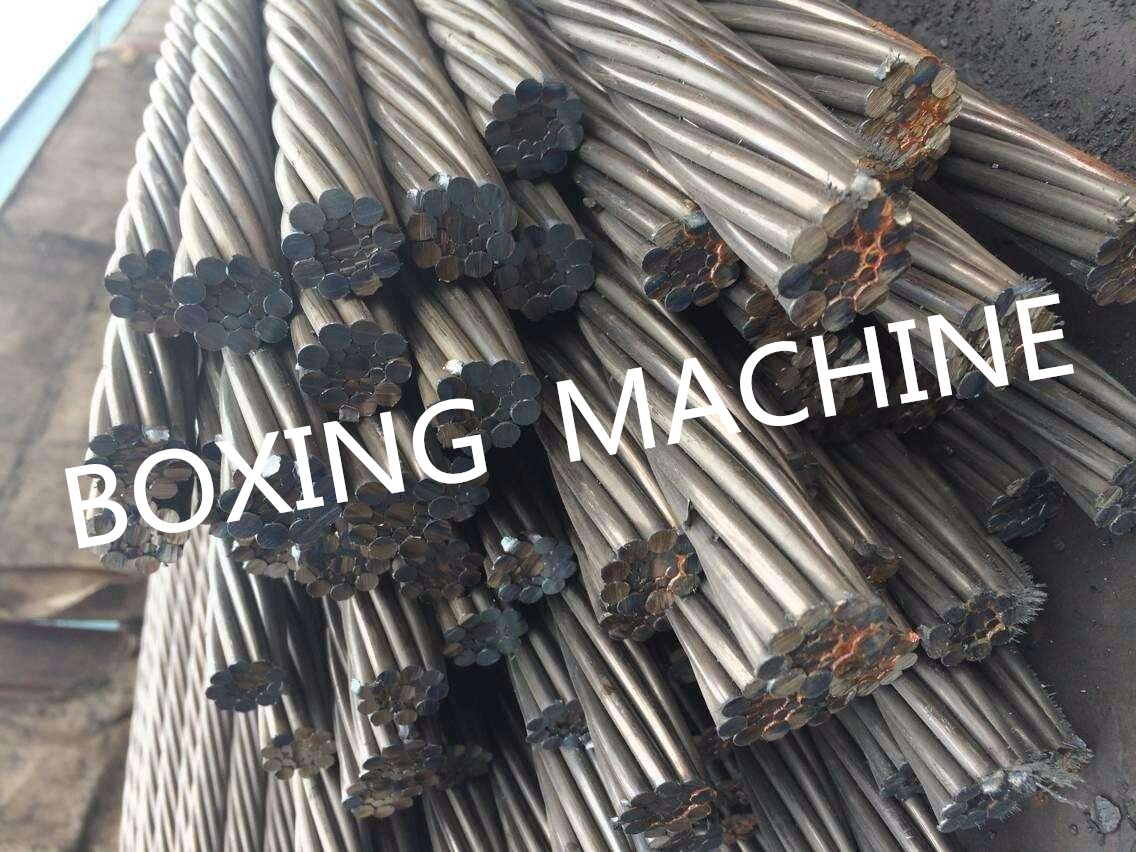

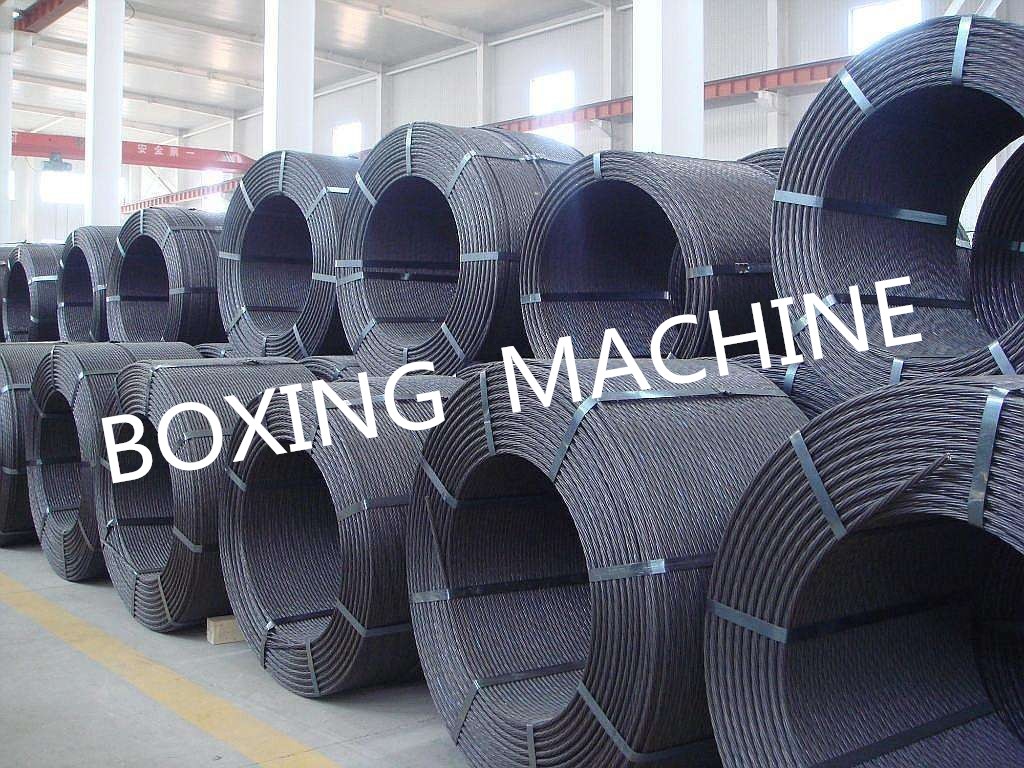

2.1Suitable for product prestressing strand1*7-9.5-17.8-1860-GB/T5224-2003

2.2Maximum Tension 16.5T

2.3Maximum alignment speed 120 m/min

2.4Jumper Maximum Rotation 560r/min

Maximumwinding speed of 2.5-layer coiler is300m/min

Maximumheating temperature of 2.6 mediumfrequency furnace is 400 C

IV.ELECTRIC CONTROL PARAMETERS OF ELECTRIC POWER

3.1Total installed capacity of motor 200 kw

3.2medium frequency furnace frequency 6 kHzpower 800 kw

3.3Speed Regulation AC Frequency Conversion
