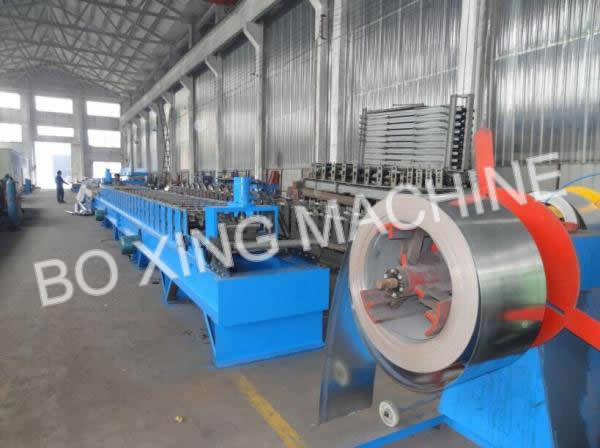

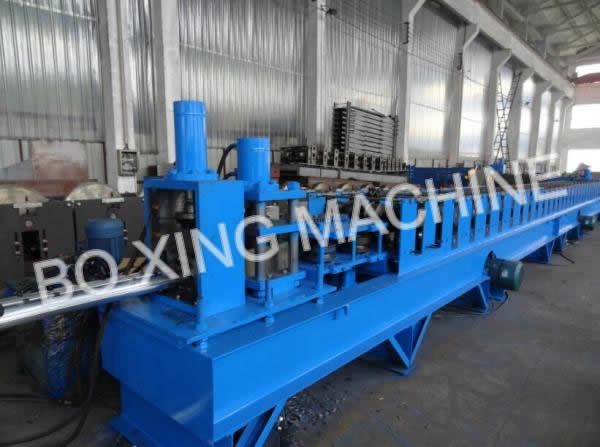

Fence post roll forming machine; Pitch Fence Post Forming Machine

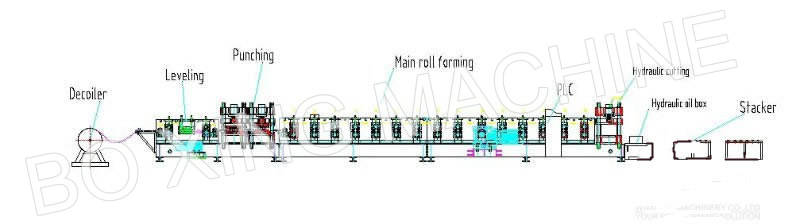

Process flow of peach post forming machine:

Technical parameters:

Main power:2-11KW motor made in china
Line Speed: 2-3m/min
Main roller stations: 30
Material of shaft:45# steel, hardening and milling on the surface
Rolled thickness :1-1.5mm,G350Mpa galvanized steel sheet or cold rolled steel
Material of the rollers: GCr15.quenched HRC58-62 ,polished,milled on the inner holes and outer radius to guarantee the rollers precision
Way of cutting: hydraulic cutting
Way of holes punching: hydraulic pre-punching
Cutting power: 11KW
Cutting length tolerance:+/-1.5mm
Way of control:adopt PLC, Panasonic PLC made in Japan
Touch screen :MCGS made in Taiwan
Yaskawa inverter speed control made in Japan
Omron encoder to measure the length,made in Japan
The rollers punch do the sticking
Requirment: 380v,50Hz,3Hz or according to the customer’s requirements
Main machine size:16mx0.7mx0.9m
Machine color: Industrial blue

Hydrauclic decoiler:

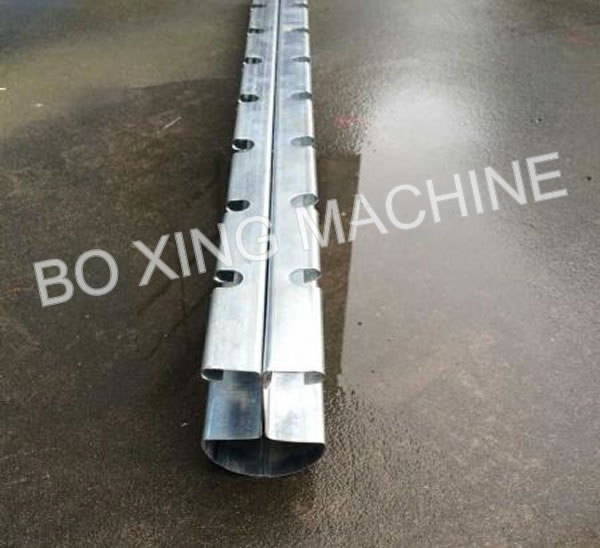

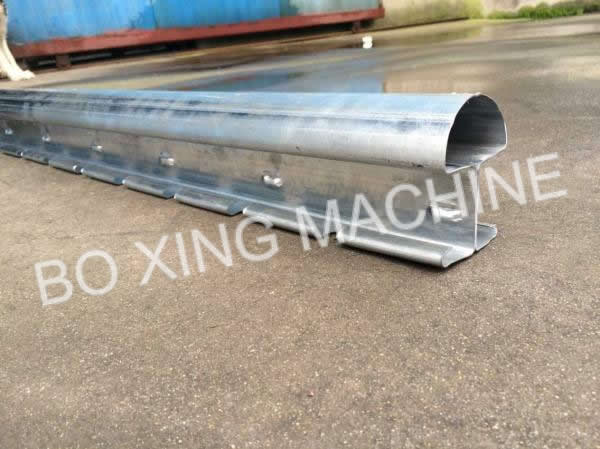

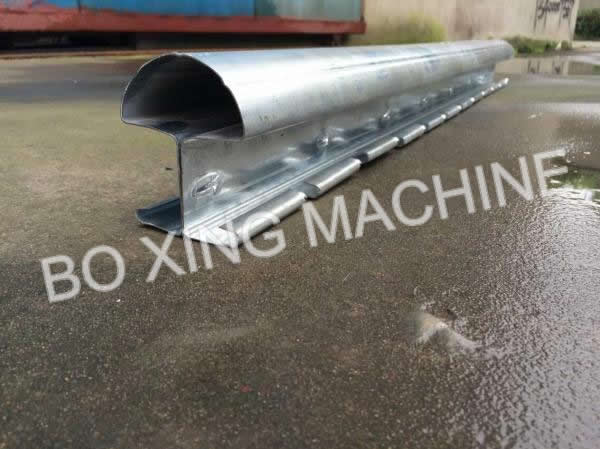

The finished products:
