Grass land fence machinery

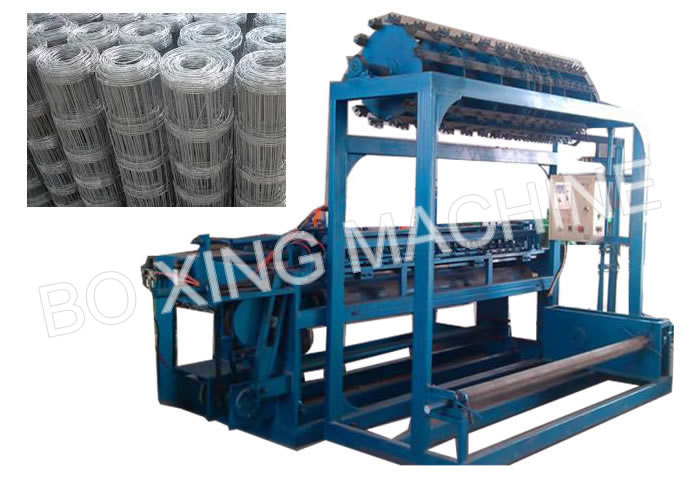

Grass land  fence machinery/ deer feeding fence machine

It is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. The machine controlled automatically by NC . All parts work coordinately and smoothly .It is operated flexibly and inexpensive. Products are neat and beautiful, diversespecifications.

Main Parameter

Type 1422mm 1880mm 2000mm 2400mm
motor 5.5kw 7.5kw 7.5kw 11kw
Dimension 2.8*3.2*2.4(m) 3.3*3.2*2.4(m) 3.4*3.2*2.4(m) 3.9*3.4*2.4(m)
Efficiency ≤45row/min ≤45row/min ≤45row/min ≤45row/min
Twine diameter 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm) 1.9-2.5(mm)
Side wire diameter 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm) 2.0-3.5(mm)
Voltage 380v 380v 380v 380v
Weight 3.5T 3.8T 4.0T 4.5T
Wrap number 11 13 18 23
Minimum weft opening number 2 4 4 6
Weft number 10 12 17 22
Productivity 21600row/day (150m/h)

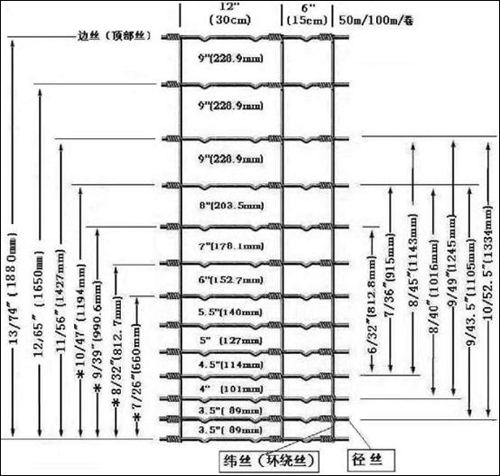

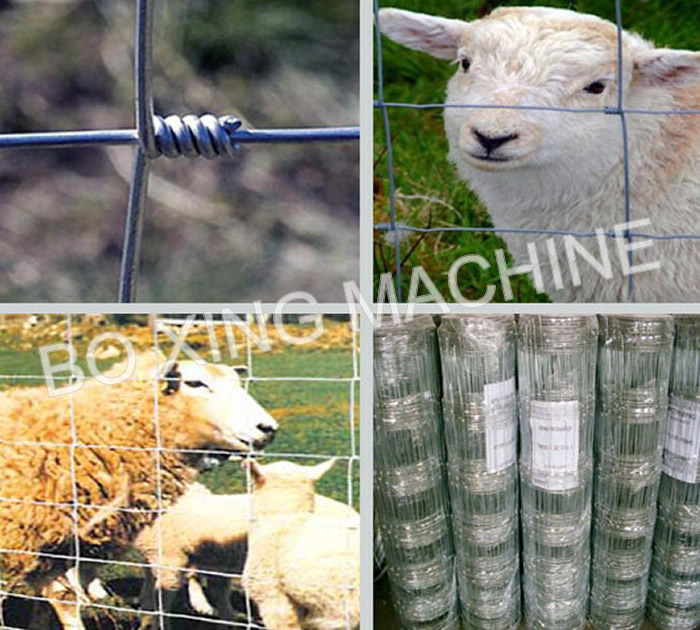

The finished products (Grass land  fence)
