Expanded metal Hi-rib lath production line ; Hi-rib lath making machine

Instruction of rib lath machine:

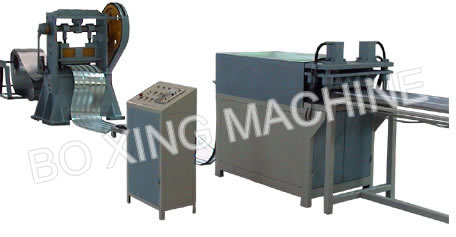

The Hi-rib lath machine is used to produce the hi-rib lath which is applied to plaster and reinforcing the wall, the hi-rib lath production line Working process is De-coil → punching → expanding and shearing → Rib lath feed out.

Inner diameter: 350
Outer diameter: 700
Material width: 485-500MM
Material thickness: 0.45mm galvanized steel
Loading weight: 2000kg
Servo motor: 1.5KW
Working speed: 450—500 strokes/minute or 10—20M/Minute
Punching Motor power: 5.5kw
Driven way: Chain and gear
Rolling passage: 7+2
Rolling thickness 0.45mm
Forming Motor power 5.5kw
Profiling mold: 45 Steel
Hydraulic cut: 7MPA 40L Tank
Lubricate: Center control
Control method: PLC
Electric element: Shneider
Machine size: 1120X600X1500
Weight: 5300KG
Installation size: 12570 x 2900x1500mm.

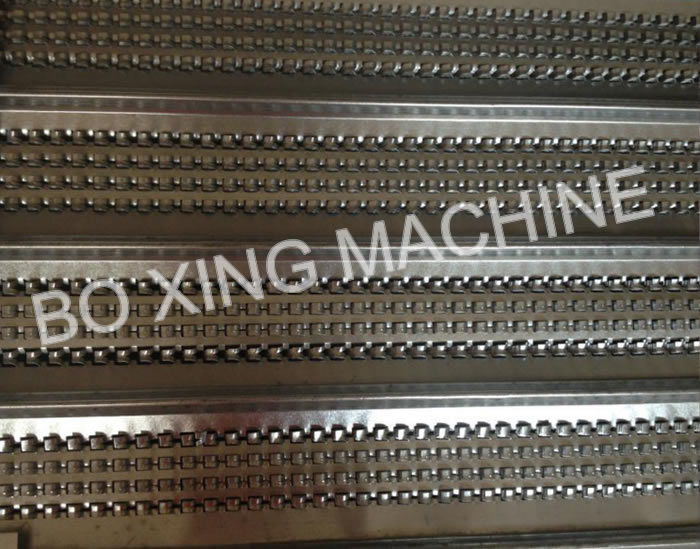

The finished products;

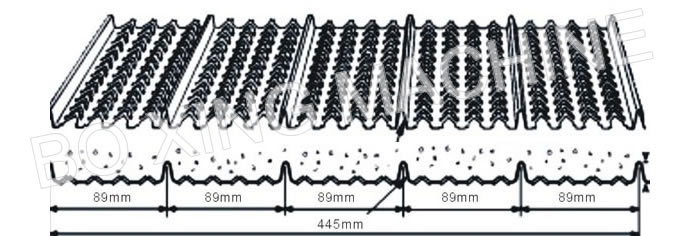

Hi-rib lath (high ribbed lath/High Ribbed Formwork) is manufactured from hot-dipped galvanized steel sheets. has been applied to the concrete structure of porjects all over the world. As early as 1969, it has tested and verified by British Cement Association of and many architecture-structure experts in ESPM that it is superior over traditional template including wooden template, steel temlate etc. Because it has better stress stress strength and free shape. It is mostly used as concrete permanent dismantle free template for civil engineering such as tunnel, bridge, raft-style foundation, sewer system, subways, retaining wall, nuclear power station, docks, storang tanks, skysrapers, ocean engineering and irregular or curved shapes. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern etc. as concrete permanent assembly-free formwork Installation: Hi-rib lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face. Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.
