Hexagonal Wire Netting Machine

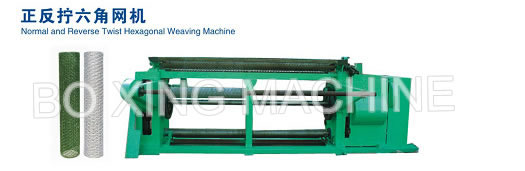

BX Series Straight- Normal and Reverse Twisted Hexagonal Wire Netting Machine
They are classified five types according to the different opening: 1", 1 1/4", 11/2", 2", 3".
The machine can continuously work, below are the characteristics:
Smooth running, low noise, automatically stop and give an alarm when there's something wrong
Scope of weaving: 1.8m double width or 3.6m single width
Used clutch arrester, neatly handle
Concentrate lubricating system, simply operate
The motor's power: 2.2KW. Three-phase current

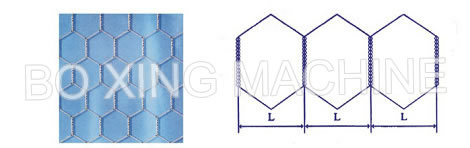

| Type | Width | Distance of mesh hole | Wire diameter | Twist times | Weight | Power | ||
| mm | in | mm | SWG | |||||
| 1 | 1200-2440 | 12 | 3/8 | 0.40 | 27 | 3 | 2500 | 3 |
| 2 | 1200-2440 | 15 | 1/2 | 0.50 | 25 | 3 | 2500 | 3 |
| 3 | 1200-2440 | 18 | 5/8 | 0.55-0.70 | 24-22 | 3 | 2500 | 3 |
| 4 | 1200-2440 | 22 | 3/4 | 0.70-0.90 | 22-20 | 3-5 | 2500 | 3 |
| 5 | 1200-2440 | 27 | 1 | 0.70-0.90 | 22-20 | 3-5 | 2500 | 3 |
| 6 | 1200-2440 | 32 | 1-1/4 | 0.70-0.90 | 22-20 | 3-5 | 2500 | 3 |
| 7 | 1200-2440 | 44 | 1-1/2 | 0.90-1.2 | 20-18 | 3-5 | 2500 | 3 |
| 8 | 1200-2440 | 54 | 2 | 0.90-1.2 | 20-18 | 3-5 | 2500 | 3 |
| 9 | 1200-2440 | 76 | 3 | 1.2-1.6 | 18-16 | 3-5 | 4000 | 5.5 |
| 10 | 1200-2440 | 94 | 3-1/2 | 1.6-2.0 | 16-14 | 3-5 | 6000 | 7.5 |
| 11 | 1200-2440 | / | 3-1/2 | 2.0-3.5 | 14-10 | 3-5 | 12000 | 15 |
| 12 | 1200-2440 | / | 4 | 2.0-3.50 | 14-10 | 3-5 | 12000 | 15 |
