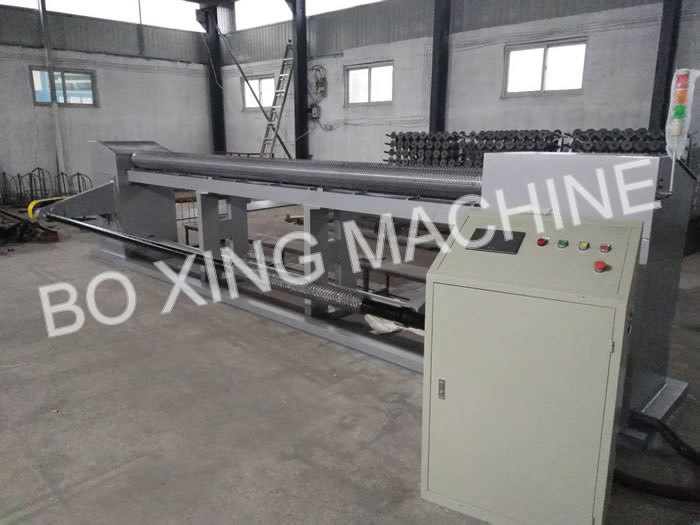

CNC Normal And Reverse Twist Hexagonal Wire Netting Machine

CNC Hexagonal Wire Netting Machine production line
CNC Normal and reverse Twist Hexagonal Wire Netting Machine;

1; Dececription
1. One set of main machine can only produce one mesh size.
2. One set of main machine can make several wire diameters.
3. You can weave two or three net with the same machine.
4. Adopt the principle of clockwise and counterclockwise twisting; no need to make iron wire spring form to increase productivity.

 2; Technical parameter

Wire dia. Mesh size Mesh width Speed Motor Weight Dimension
0.55mm-1.1mm 1” 3.3M 90-100m/h 10-13.5KW 3T 6*1.3*1.6M
0.7-1.6mm 2” 3.3M 135-150m/h
0.7-1.8mm 3” 3.3M 140-160m/h


3;Advantage

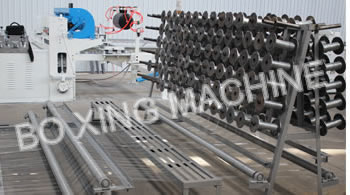

1, Spools feeding raw material, 45-50meters/ minute, high production.
2, Weave several nets with the same machine.
3, Grid counter to calculate weaving length and stop machine automatically.
4, Clutch brake and spot start, fewer workers required, easy operation.
5, Centralized lubrication, easy maintenance.
6, Automatically winding up rolls (cardboard in center).

4; Application
1. used in petroleum, construction, farming, chemical industry, and pipes parcel wire mesh.
2. used for fencing, residential and landscape protection, etc.
3. used to make stone wire mesh cages to protect seawall, hillsides, road and bridge, reservoirs
and other civil engineering, etc.
