Single Barbed Wire Machine

The barbed wire machine is used to produce the single barbed wire. The raw material shall be in conformance with GB/T343-94, the standard of thermally galvanized low-carbon steel wire for general use. The main wire can be middle carbon wire, but the barbed wire only can be low carbon wire. Its products are widely used in fence, railway, highway and agriculture & stockbreeding fields.

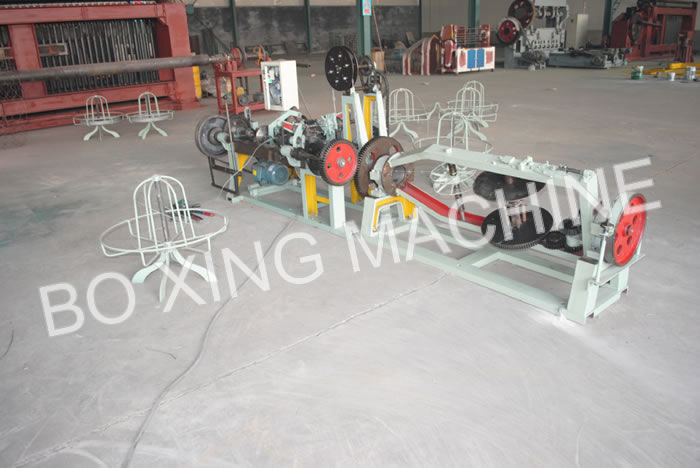

The Model BX-B single wire machine basically consists of two main systems, which are prickle knitting system and wire collecting system and three steel wire feeding wheels are facilitated at the same time. It can be operated flexibly and performs consistently and reliably, and can be calculate the QTY by electric counter, it is the unique prickly steel wire manufacturing equipment in China.

Main technical parameter:
1). BX-B type barbed wire machine

SN Item Unit Parameter
1 Motor Model Y100L2-4, 2.2kw
2 Speed of transmission shaft r/min 357
3 Main wire feeding speed time/min 119
4 Main machine size mm 1900×1300×980
5 Recoiling part size mm 1800×750×750

Remark: special requirement can be according to both parts' agreement.

2). Barbed wire specification

SN Item Unit Parameter
1 Barbed space mm 50, 80, 100
2 Main wire diameter mm 2.2-3.5
3 Barbed wire diameter mm 1.8-2.2

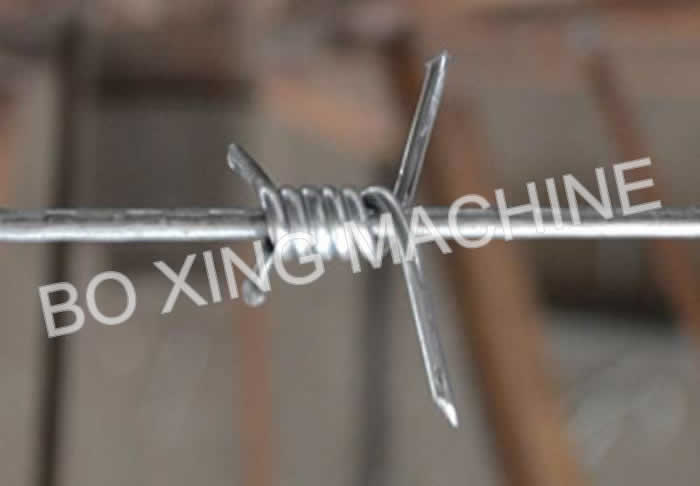

Finished products:
