Auto Chain Link Fence Machine4M

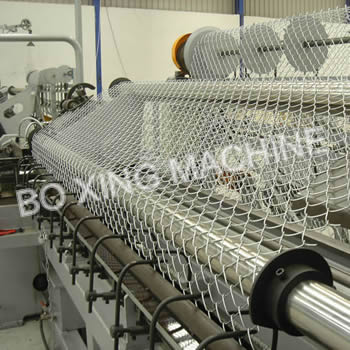

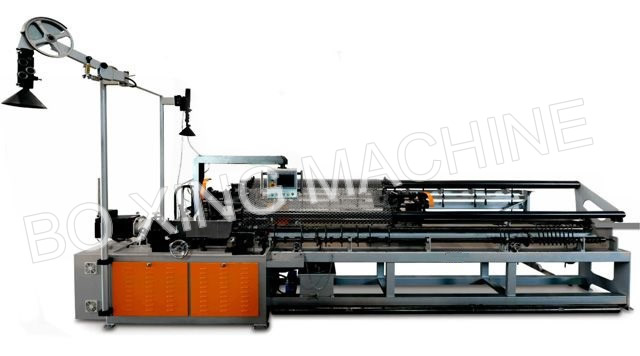

4M Chain link fence machine(Automatic chain link fence machine)

Introduction of Chain Link Fence Machine:

The chain link fence machine is welded of high quality steel and channel steel with PLC control. Its knife molds has high hardness to ensure the stability and beauty of the network and it has high cutting precision with easy operation. The chain link machine using either galvanized wire or PVC coated wire materials. It can produce both standard and compacted rolls by the adjustment in the coiling speed .

Width scope of weaving 4 m
Width of net 2, 3, 4m
Diameter of wire 1.8-4 mm (depend on the mesh size)
Speed of the axle of shaped knife 275-1100 rpm (variable speed)
Power consumption Seven motor, one 3.0KW, one 1.5KW, two 0.75KW, one 0.55KW and two 0.12kw
Output 210-240m2/h
Actual output is related with the mesh opening size.
Suitable wire to the machine Galvanized wire, drawn wire, steel wire, PVC wire
Mesh opening size 1”-3-1/2”
Weight of equipment 4200 kg
Outer size 6700*1430*1800 mm
One side or both sides of the end of the net hole is twisted or with burr in edge

Chain link fence:

Material:Hot-dip galvanized iron wire, galvanized iron wire

Application: Chain link fences are mainly used as isolation screen and protection system for expressway and railway, protective fences for rivers, playground and gardens, mines, fences for security for residential buildings and commercial sites

Mesh opening inch 1.5 2 2.25 2.4 2.5 3 4
mm 40 50 55 60 65 76 100
Wire diameter 18# —7#
1.20mm———5.0mm

Mesh length 1.0m——50m
Mesh width 0.5m——4.0m

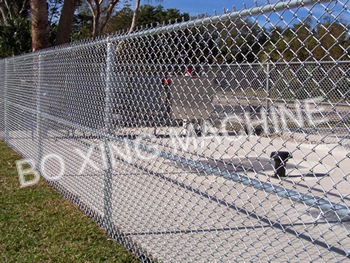

The finished products (Chain Link Fence) :
